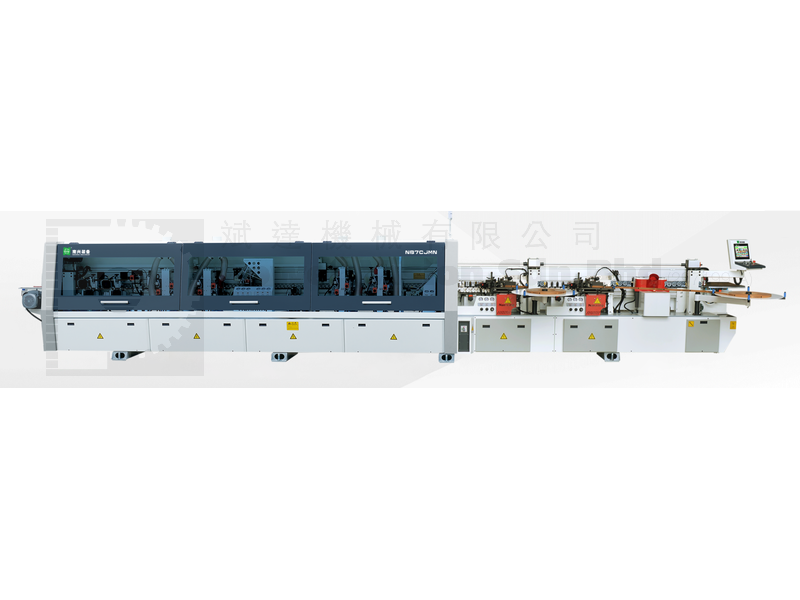

Edge Banding Machine with Double Gluing Units for Narrow Parts
Edge Banding Machine with Double Gluing Units for Narrow Parts
NB7CJMN
Whatsapp
Email
Product Description

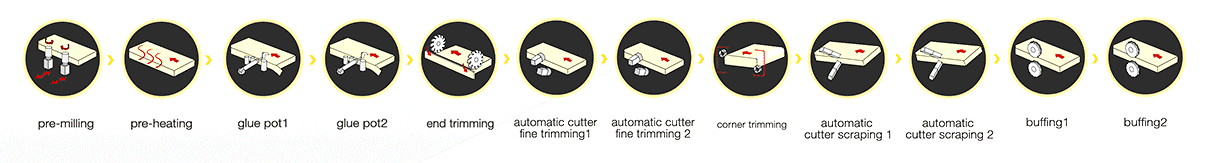

Edge Banding Direction
Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 30mm work piece in width.
Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.
With additional pre-milling and corner trimming function.
Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
Most electric components are in world famous brand.
Technician Data
Model
NB7CJMN
Narrow long edge
40×200×9mm
Narrow short edge
45×200×9mm
Panel thickness(narrow edge
Corner trim on)
≤25mm
Panel thickness
9-60mm
Edge tape thickness
0.4-3mm
Feed speed
16/20/24m/min
Feed speed(narrow edge
Corner trim on)
16m/min
Dust extraction
φ125mm×5
Total power
30kw
Overall dimension
9800×1050×1650mm
Net weight
3670kg
Related Product(s)

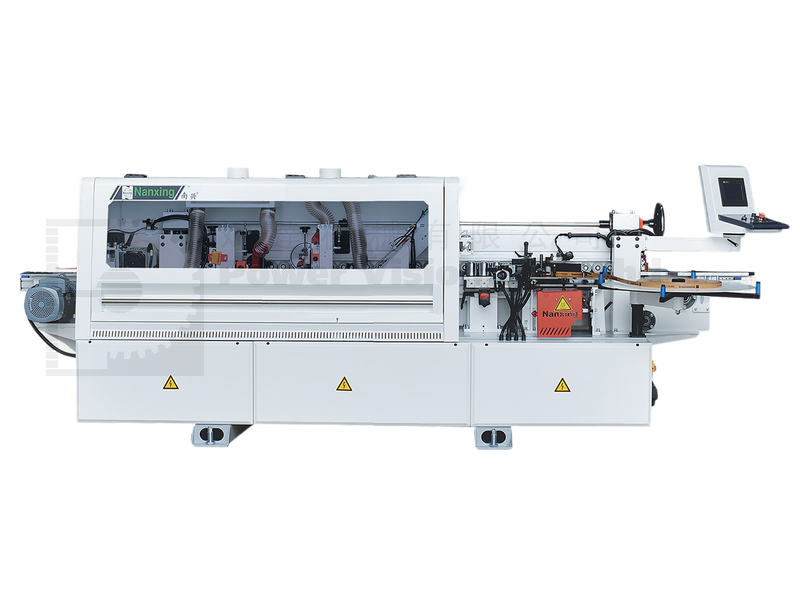

Edge Banding Machine
NBC332S

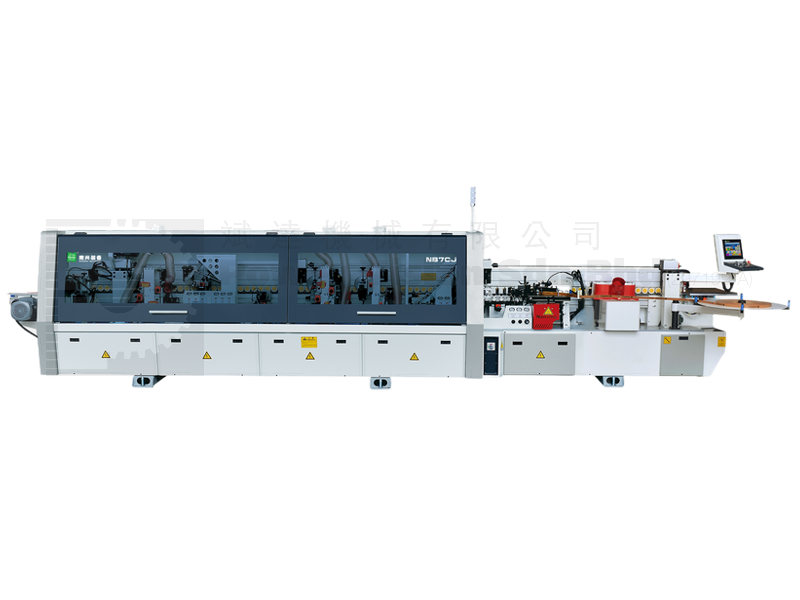

Edge Banding Machine
NB7CJ

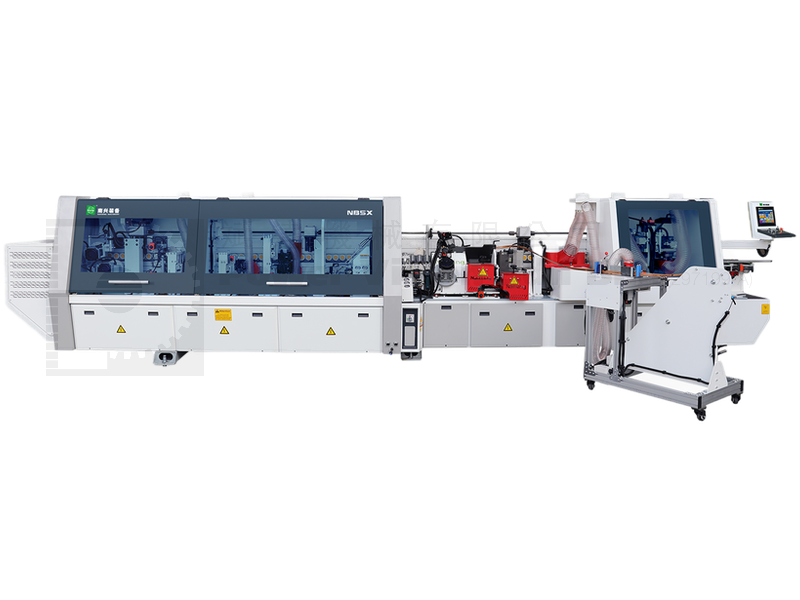

Edge Banding Machine for Inclined Edge
NB5X

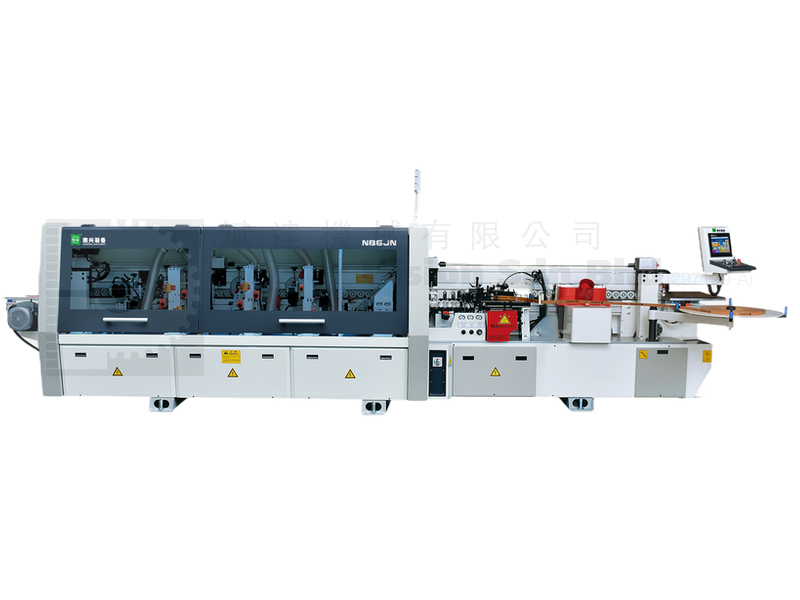

Edge Banding Machine for Narrow Parts
