Edge Banding Machine for Narrow Parts

Edge Banding Machine for Narrow Parts

NB6JN

Product Description

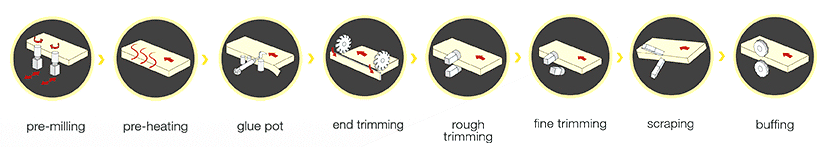

Edge Banding Direction
Edge Banding Machine for Narrow Parts

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming.
  • Pre-milling for higher binding effect.
  • Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 30mm work piece in width.
  • Most electric components are in world famous brand.

Edge Banding Machine for Narrow Parts NB6JN   Edge Banding Machine for Narrow Parts NB6JN   Edge Banding Machine for Narrow Parts NB6JN

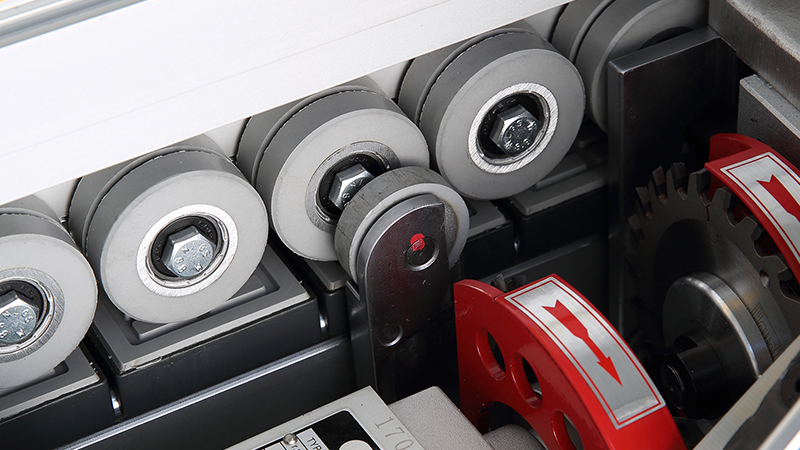

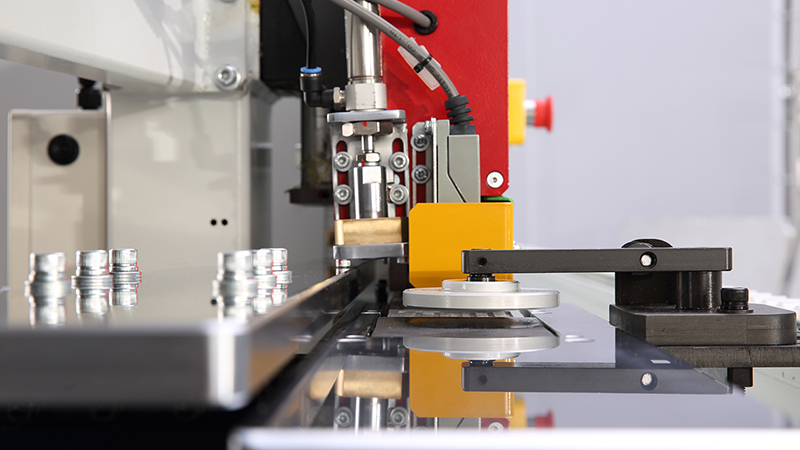

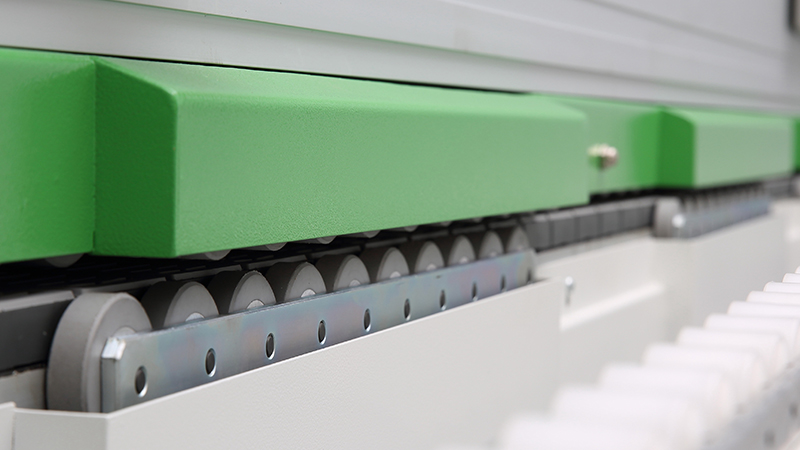

Pushing assistance for narrow edge   Feeding assistance rollers   Feeding assistance rollers

Edge Banding Machine for Narrow Parts NB6JN

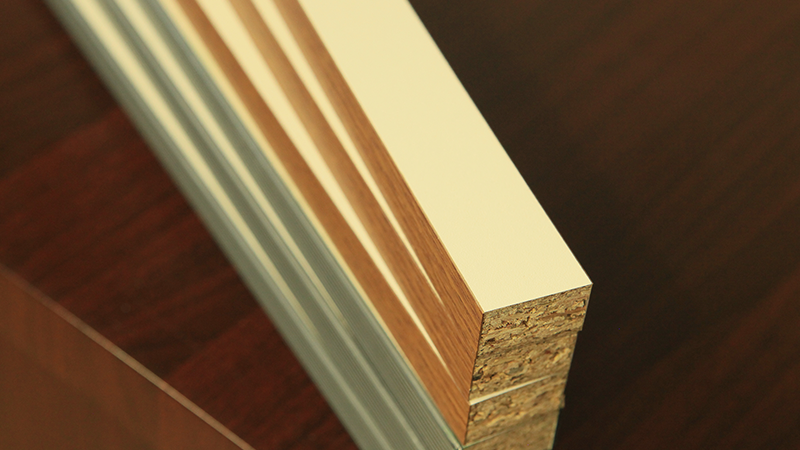

Edge banding result


Technician Data
Model NB6JN
Panel length ≥120mm
Panel width ≥30mm
Min panel size 300x30mm (long edge)
Panel thickness 9-60mm
Edge tape thickness 0.4-3mm
Feeding speed 16/20/24m/min
Dust extraction φ125mm×4
Total power 30kw
Overall size 6600×1050×1650mm
Net weight 2460kg
