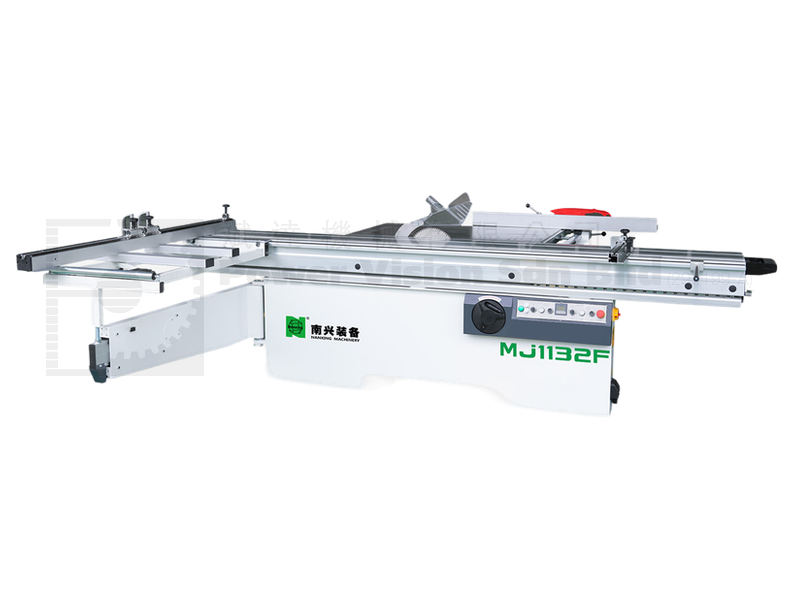

| Sliding table saw MJ1132F makes panel cutting easy and flexible. Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment. Height of saw blade can be adjusted electrically, main saw blade rotating speed up to 5200rmp and max. cutting length 3100mm. You could use to cut all sorts of panels through simple operation just as your requirements. |
| |
- Strong machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming
- Powerful saw motor, easy running sliding table, precise guiding board and tilt adjustment.
- Height of saw blade can be adjusted electrically just by one button.
- Main saw and scoring saw can tilt within 0-45°by using hand wheel.
- Optional MJ1138F for your choice for cutting max 3.7m panel.
|
| |
.jpg "Sliding Table Saw MJ1132F") |
|
.jpg "Sliding Table Saw MJ1132F") |
|
.jpg "Sliding Table Saw MJ1132F") |

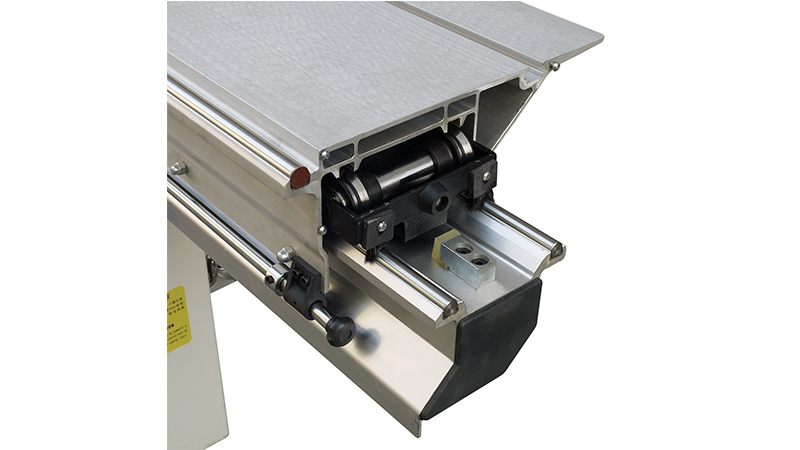

| Sliding table |
|

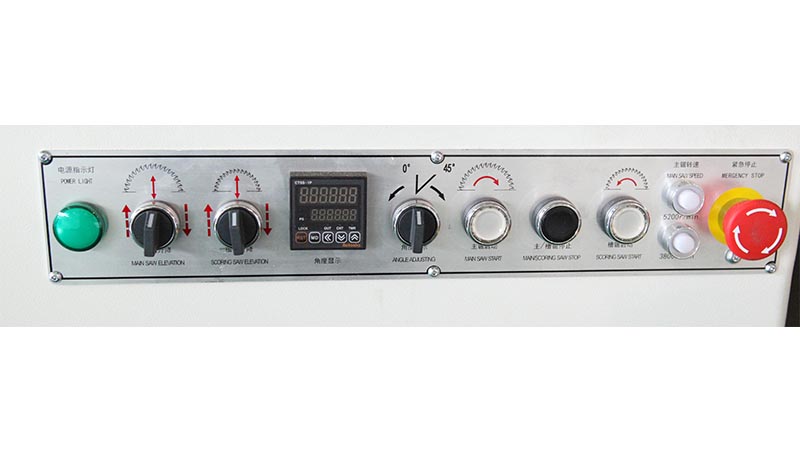

Operation panel |
|

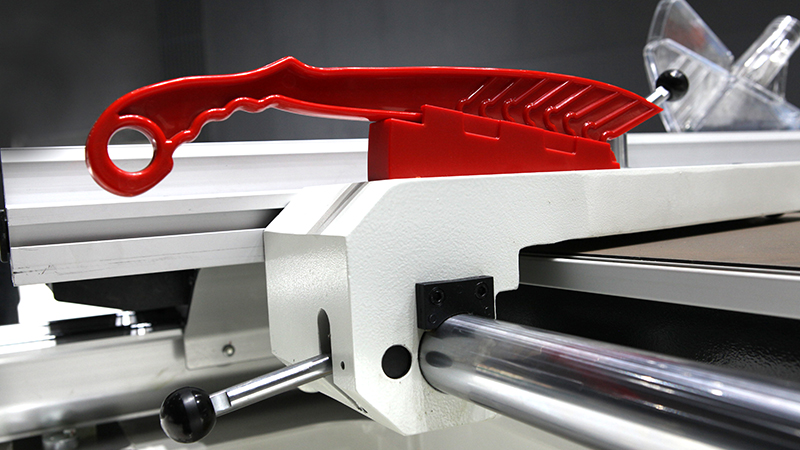

Strong guiding rod |
| |
.jpg "Sliding Table Saw MJ1132F") |
|
.jpg "Sliding Table Saw MJ1132F") |
|
.jpg "Sliding Table Saw MJ1132F") |

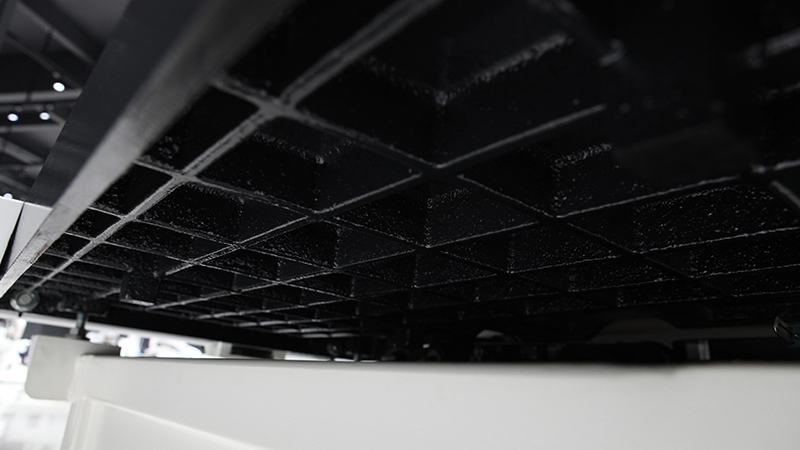

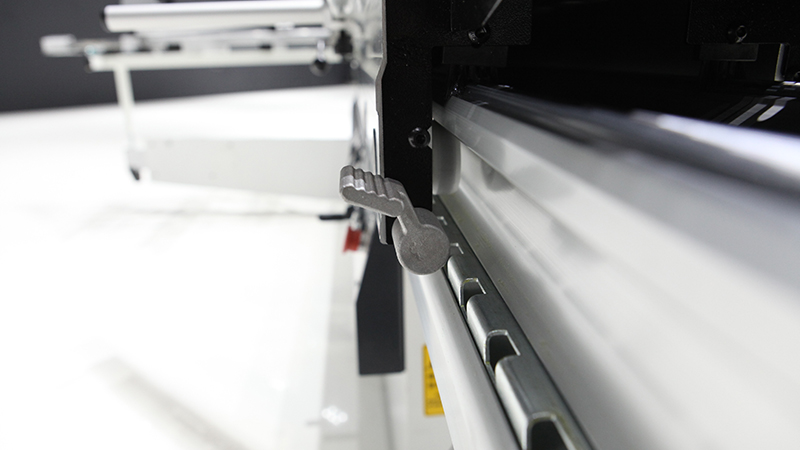

| Details for higher performance |
|

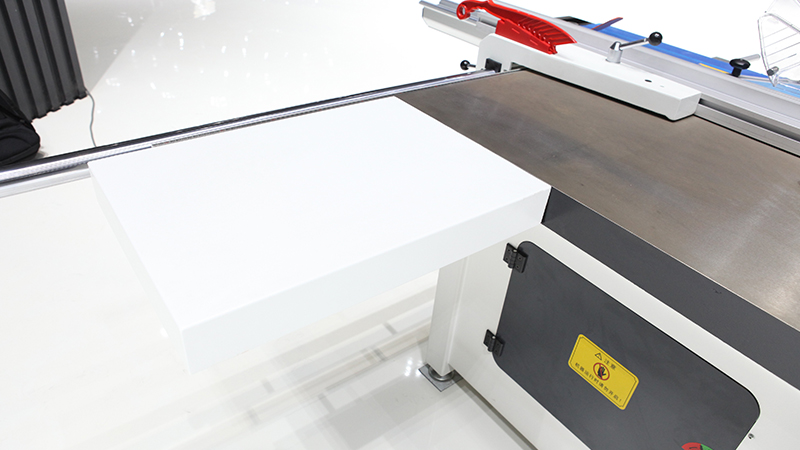

Extended table plate |
|
Strong table plate |
| |
.jpg "Sliding Table Saw MJ1132F") |
|
|
|
|

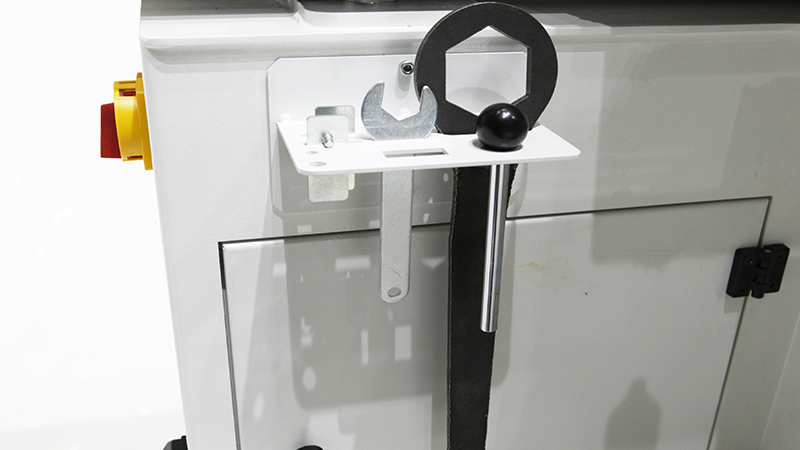

| Tool storage |
|
|
|
|
|
| |
Technician Data
|
| Model |
MJ1132F |
MJ1138F |
| Cutting length |
3100mm |
3700mm |
| 0°cutting thickness |
100mm |
100mm |
| 45°cutting thickness |
70mm |
70mm |
| Main saw rotating speed |
3800/5200rpm |
3800/5200rpm |
| Main saw motor |
5.5kw |
5.5kw |
| Scoring saw rotating speed |
9000rpm |
9000rpm |
| Scoring saw motor |
1.1kw |
1.1kw |
| Saw blade tilting |
0-45° |
0-45° |
| Dust extraction |
φ120mm |
φ120mm |
| Total power |
6.6kw |
6.6kw |
| Overall size |
3400×3380×1400mm |
3400×3380×1400mm |
| Net weight |
1000kg |
830kg |
|
|
