Edge Banding Machine

Edge Banding Machine

NB7CJ

Product Description

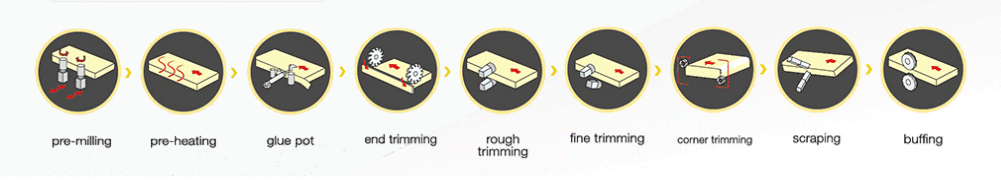

Edge Banding Direction

Edge Banding Machine NB7CJ

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Merges numerous functions in one machine, including pre-milling, pre-heating, glue pot, snipping, end trimming, rough trimming, fine trimming, corner trimming, scraping and buffing, edge banding work can be done in one process.
  • Automatic standby, one-button wake-up device and energy saving;
  • Most electric components are in world famous brand.

Edge Banding Machine NB7CJ   Edge Banding Machine NB7CJ   Edge Banding Machine NB7CJ

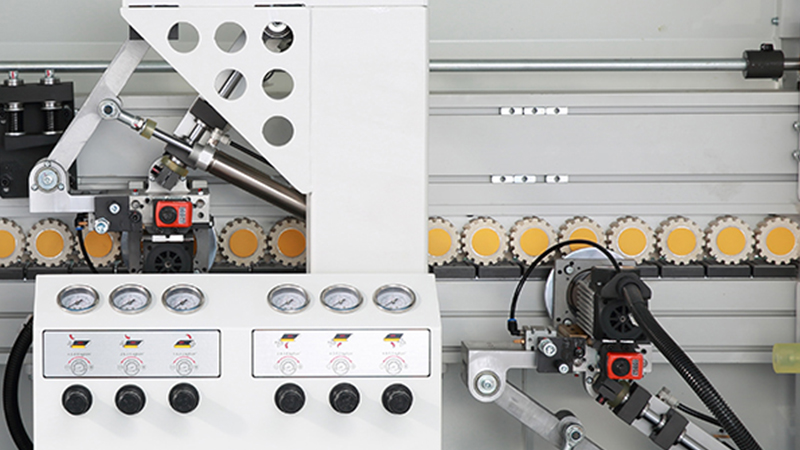

Up and down of pressure
beam is automatic

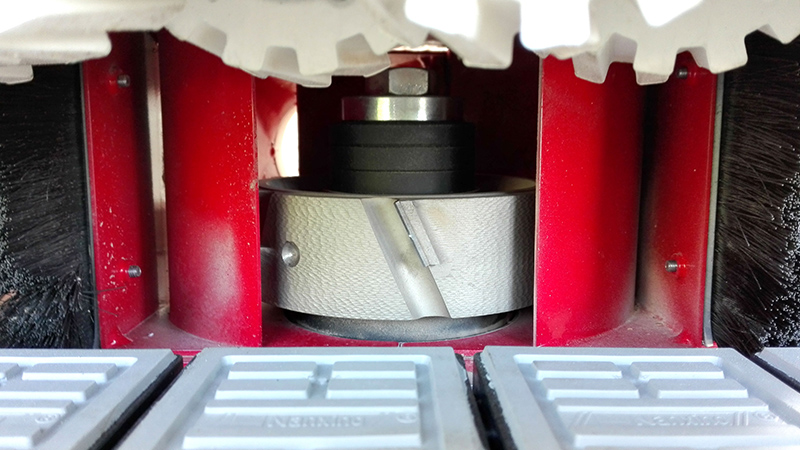

  Pre-milling-cutters-in-diamend-blades
to ensure smooth workpiece edge

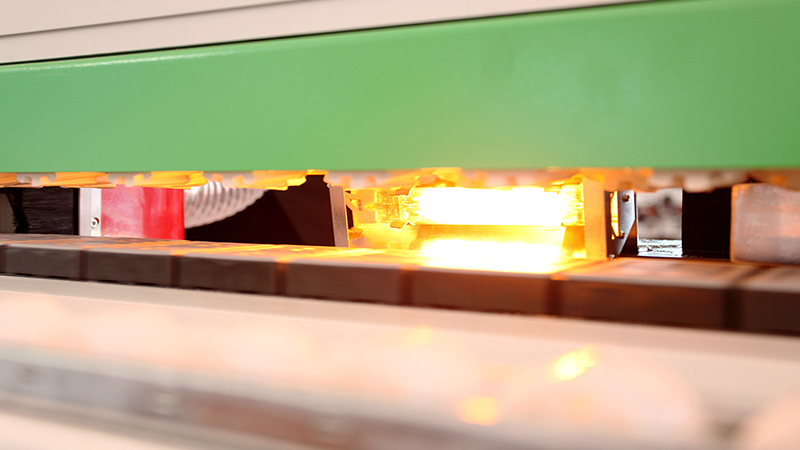

  Pre-heating is designed for zone
in wet and lower temperature

Edge Banding Machine NB7CJ   Edge Banding Machine NB7CJ   Edge Banding Machine NB7CJ

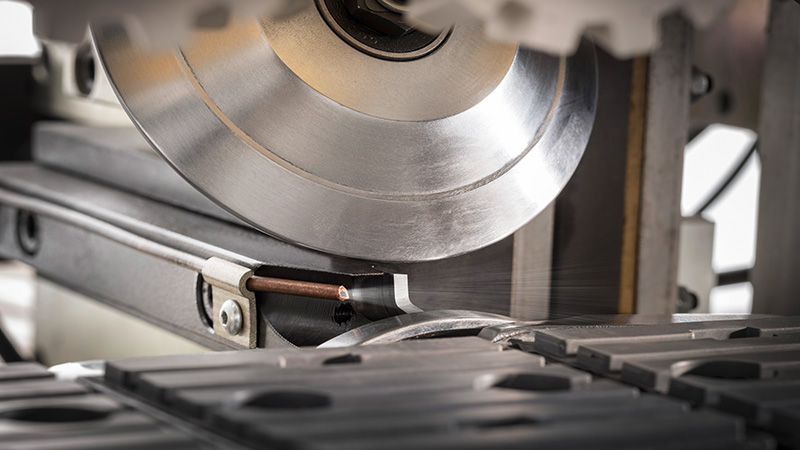

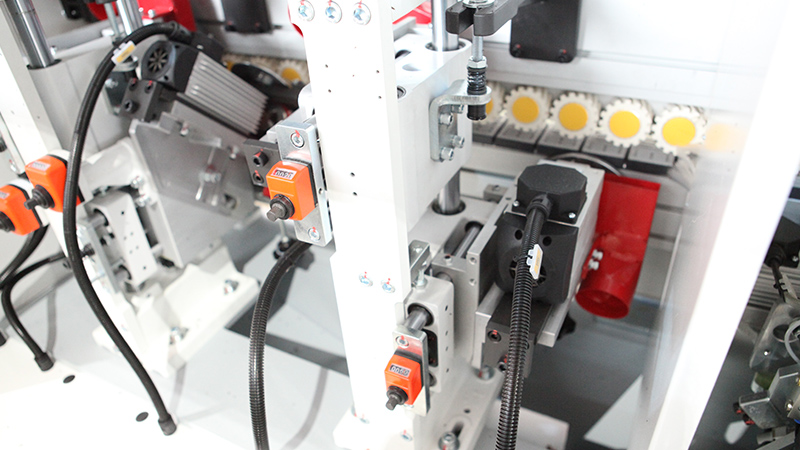

Rough and fine trimming   Corner trimming   Scraping with air jet


Technician Data

Model NB7CJ
Panel length ≥120mm(开跟踪≥200mm)
Panel width ≥80mm
Min panel size 120×80mm
Panel thickness 9-60mm
Edge tape thickness 0.4-3mm
Feeding speed 16/20/24m/min
Feeding speed(corner trimming on) -
Dust extraction φ125mm×4
Total power 24kw
Overall size 7700×1050×1650mm
Net weight 2800kg

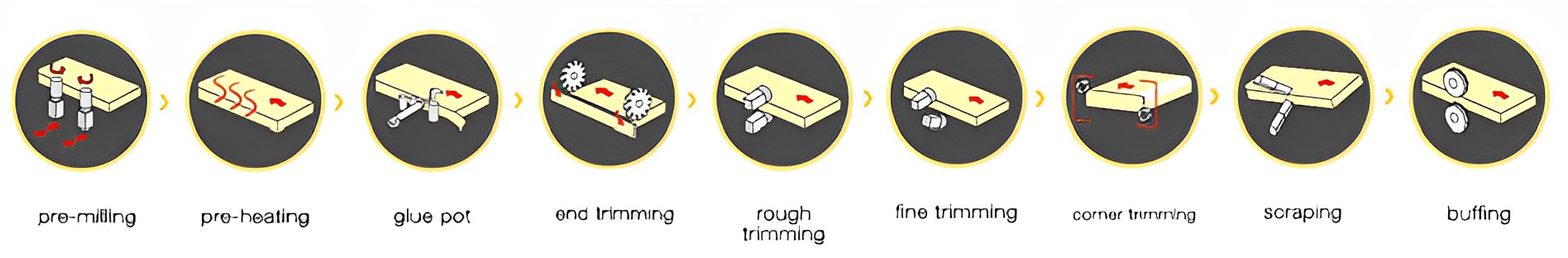

Edge Banding Direction
