Drilling Machine - Auto Feed In

Drilling Machine - Auto Feed In

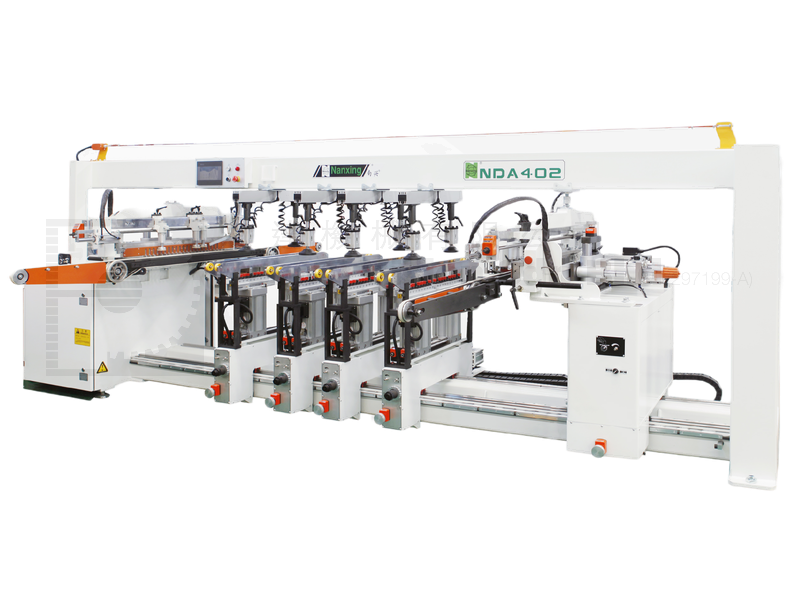

NDA402

Product Description


  • Strong bed structure machine body of high stability and longer service life;
  • The design of 4 boring rows on bottom and 2 rows on side is suitable for most boring requirements, especially for mass production;
  • Auto feed-in and feed-out with 3 sections for continuous working with shortest waiting time;
  • Two boring blocks controlled by separate motors in each row. Boring blocks can rotate to 90 degrees
  • Pneumatic locking device applied at vertical rows, adjusting or changing boring block will be much faster and precise;

Drilling Machine NDA402-Auto Feed In   Drilling Machine NDA402-Auto Feed In   Drilling Machine NDA402-Auto Feed In

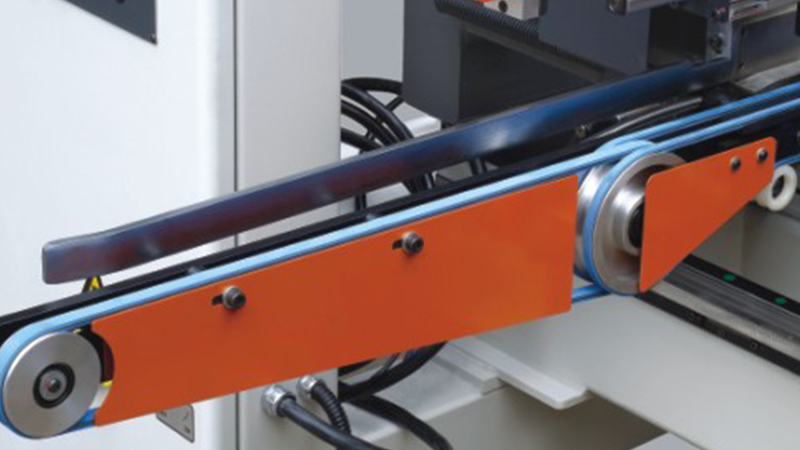

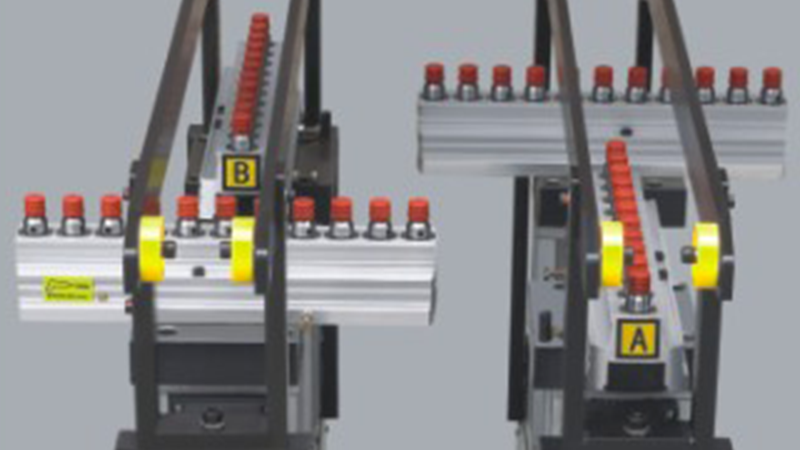

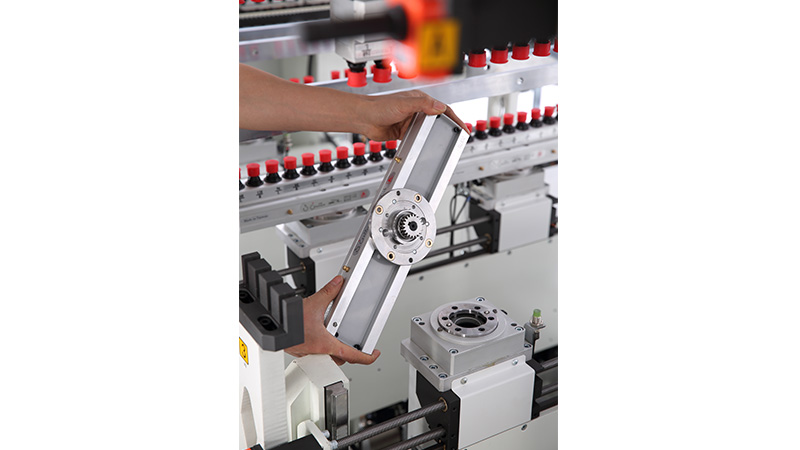

3 sections auto feed in   Boring block 90 degrees rotation   Pneumatic quick release

Drilling Machine NDA402-Auto Feed In

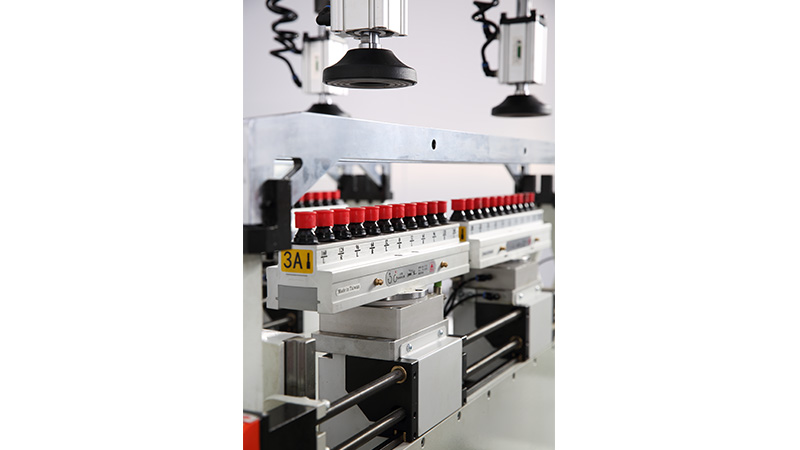

Top presser


Technician Data

Model NDA402
Max panel width 2650mm
Min. panel width 250mm
Max. panel thickness 70mm
Spacing of drills 32mm
Max vertical boring depth 70mm
Max horizontal boring depth 40mm
Total power 13.4kw
Overall dimension 4790×2635×1575mm
Approx. weight 2400kg
